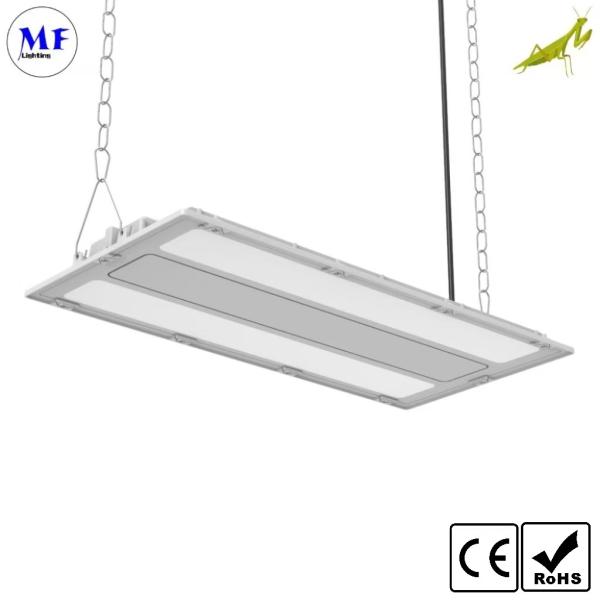

150W IP66 LED Linear High Bay Light Waterproof Dustproof 3000K-3500K Beam Angle 30°/60°/90° For Supermarket
High quality aviation aluminum heatsink, and a nodic oxidation treatment, giving high output and long term reliable performance. Together with high efficiency mid-power LED light source and high performance driver, this product values each dollar investment in the industrial lighting areas.
Adopted advanced constant current controlling techniques; Wide voltage range and high voltage 347V 480V available, global universal; Overcome the lighting instability caused by electric network of ballast and noise pollution; Avoid the stimulation and tiredness taking from long-time working.
The Mantis-2 High Bay Light is a versatile lighting solution suitable for various applications. With an IP66 rating, it ensures protection against dust and water, making it suitable for both indoor and outdoor use. This product is available in different sizes ranging from 386x276x57 to 690x286x61, providing options to suit different installation requirements.
Featuring a wide beam angle range from 30° to 150x80°, the Mantis-2 High Bay Light offers flexibility in lighting design. It is available in different wattage options including 100W, 150W, 200W, 240W, 300W, 350W, 400W, and 500W, catering to various lighting needs. The product is packaged conveniently, with 2 pieces per carton in sizes ranging from 430x340x170 to 635x350x180.
Overall, the Mantis-2 High Bay Light combines durability, versatility, and efficiency, making it a reliable choice for illuminating spaces with high ceilings such as warehouses, factories, gyms, and more.
Product Benefits:
Led Chip:
170lm/w for whole lamp 3000-6500k available
Power supply:
Meanwell driver
Input Voltage: AC90-305V/AC180-528V
Power factor: 0.95
0-10V, DALI, PMW signal, Timing Dimmanle functions
LED DRIVER
Mean well driver is created for high bay, tunnel and roadway lights. The high efficiency and compact metal case enables thwm to run cooler, significantly improving reliability and extending protection is provided against input surge, output over voltage, short circuit, and over temperature.
HIGH LIGHT EFFICIENCY, HIGH HEAT DISSIPATION
Unique linear design with powerful thermal performance as well as high reliable waterproof rating IP66.
1. Lumen>170lm/w
2. UL DLC 4.0 Premium, CB SAA Certificated
3. Mean well driver, 7 years warranty
4. Separated heat dissipation for led driver and led chip
5. Three-dimensional diamond light guide technology for optical lens 120°
6. Intelligent lighting, zigbee control system, daylight sensor dimming, microwave sensor dimming, three in one(0-10V, PWM, Resistance) dimming available.
7. Endless connection for 2 pcs lamps.
8. 4 instalaltion ways:
1). Suspended installation
2). Boom installation
3). Abutting joint installation(between 2 lamps)
4). Bracket surface mounting installation.
Technical Parameter:
| Power | Input voltage | LED Quantity | Lumens | Dimension |
| 100W | AC90-305V | 154PCS | 17000lm | 386*276*57mm |
| 150W | AC90-305V | 154PCS | 25500lm | 386*276*57mm |
| 200W | AC90-305V | 308PCS | 34000lm | 486*276*57mm |
| 250W | AC90-305V | 308PCS | 42500lm | 486*276*57mm |
| 300W | AC90-305V | 462PCS | 51000lm | 590*286*61mm |
| 360W | AC90-305V | 462PCS | 61200lm | 590*286*61mm |
| 400W | AC90-305V | 616PCS | 68000lm | 690*286*61mm |
| 500W | AC90-305V | 616PCS | 85000lm | 690*286*61mm |
Physical:
CRI: >70Ra
PF: >0.95
Lumen Maintanance: 90%
Output Voltage Range: DC42-48V
Frequency: 50-60Hz
Operating Temperature: -40°C to 55°C
Beam Angle: 120°
Lens Material: clear/frosted PC
Housing Material: Aluminum
Mounting: Pipe, ceiling, suspend mounts.
Qualifications:
Material usage: UL CB SAA Compliant, no mercuey.
Environment: Indoor, ourdoor, Dry/ wet location
IP Rating: IP66
Light Distribution:
Intelligent Lighting
Commercial, industrial and institutional lighting have all gained substantially in recent years from the repid advances in both computers and lighting technology. The advent of intelligent lighting controls now offers commercial and industrial businesses greater opportunities for more impressive energy savings and improved control of a number of lighting parameters.
Function:
1. APP remote control
2. Dimmable, 0-100% dimming
3. Timming dimmable, control the lights at different brightness level in different time.
4. Grouping and partition control
Additional Information:
Packing info
1. each into one carton box
2. carton material: K&K Material carton
| Model | Carton size (2pcs/ctn) | G.W. (KG) | 20'GP | 40'GP | 40'HQ |
MF-LHB-M2S100W
MF-LHB-M2S150W | 430*340*170MM | 4.2 | 950 | 2000 | 2300 |
MF-LHB-M2M200W
MF-LHB-M2M240W | 530*340*170MM | 5.5 | 500 | 1100 | 1300 |
MF-LHB-M2L300W
MF-LHB-M2L350W | 635*350*180MM | 7.3 | 350 | 750 | 900 |
MF-LHB-M2L400W
MF-LHB-M2L500W | 635*350*180MM | 11.5 | 280 | 600 | 700 |
The Mantis-2 Family Linear High Bay Light is well-suited for a variety of industrial and commercial applications where high-quality, efficient lighting is essential. Some of the key applications of this product include:
Warehouses: The Mantis-2 is well-suited for lighting up warehouses with high ceilings, providing ample brightness for efficient operations and improved visibility.
Factories: In industrial settings such as factories, the Mantis-2 ensures well-lit workspaces, enhancing productivity and safety for workers.
Gymnasiums: This high bay light is ideal for illuminating gymnasiums and sports facilities, creating a well-lit environment for activities and events.
Retail Spaces: The Mantis-2 can be used in retail spaces with high ceilings to showcase products effectively and create a bright and inviting atmosphere for customers.
Agricultural Facilities: In agricultural settings such as barns or greenhouses, the Mantis-2 provides the necessary lighting for plant growth and maintenance.
Workshops: Workshops and manufacturing facilities can benefit from the powerful illumination provided by the Mantis-2, ensuring visibility and safety in work areas.
Indoor Sports Arenas: Indoor sports arenas and recreational facilities can use the Mantis-2 for uniform and efficient lighting during events and activities.
Logistics Centers: Logistics and distribution centers can optimize their operations with the bright and energy-efficient lighting offered by the Mantis-2.
Overall, the Mantis-2 Family Linear High Bay Light caters to a wide range of applications where reliable, durable, and efficient lighting solutions are essential for enhancing productivity, safety, and visibility in large spaces with high ceilings.
Q1: What do you sell?
A1: We provide good quality of floodlight, high bay light, explosion proof light, tri-proof light, downlight, and other lighting products, as well as responsible services and reliable after-sales warranty.
Q2: Is it OK to print my logo on led light product?
A2: Yes. We provide ODM and OEM services. Please inform us formally before our production and confirm the design firstly based on our sample.
Q3: How to deal with the faulty?
A3: During the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q4: Can I have a sample order for led light?
A4: Yes, we welcome sample order to test and check quality. One sample or mixed samples are acceptable.
Q5: How long time to ship the goods if place an order?
A5: Usually 7 days for sample or small order,15 working days for bulk order, but sometimes depend on the order quantity.
